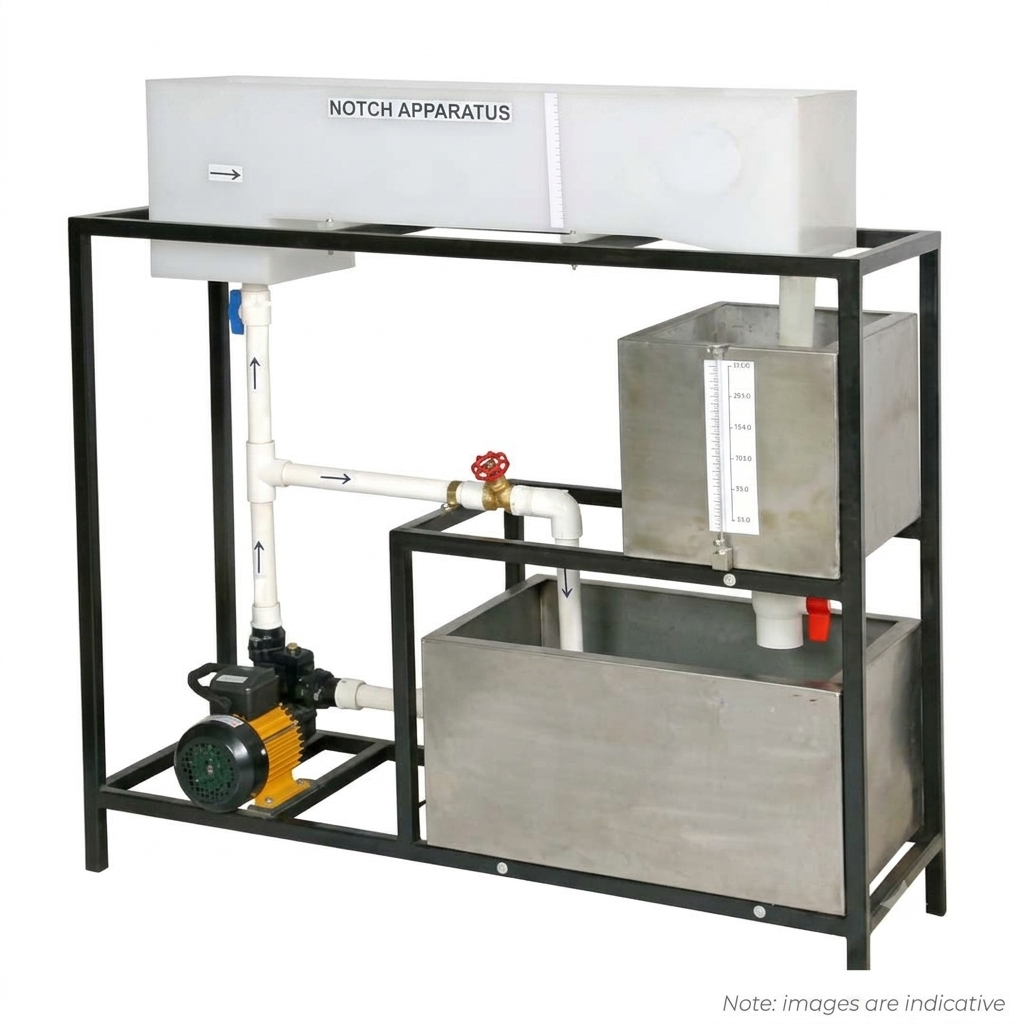

Weirs And Notch Apparatus

Description

Product Overview of Weirs And Notch Apparatus

Essential open-channel hydrodynamics training capability is manufactured and supplied by SV Technocrats India, Pune’s leading producer of engineering laboratory equipment. The Weirs and Notch Apparatus is engineered to investigate open channel flow characteristics, discharge rates, and crest head relationships across various hydraulic obstruction profiles without complex mathematical overhead.

Core Construction & Technical Features of Weirs And Notch Apparatus

• Transparent Hydraulic Flume: Flowing water is conveyed through a clear acrylic rectangular channel equipped with inlet flow dampeners to maintain smooth surface profiles.

• Interchangeable Elements: Standard overflow plates—including rectangular sharp-crested weirs, triangular V-notches, and trapezoidal Cipolletti weirs—are mounted at the discharge end of the flume.

• Upstream Head Instrumentation: Water surface levels above the weir crest are accurately measured using a micro-adjusting hook or point gauge mounted on a sliding rack.

• Water Recirculation System: Continuous fluid flow is maintained using an integrated centrifugal pump, while volumetric discharge is determined via a calibrated measuring tank.

Experimental Capabilities & Learning Outcomes

• Discharge Coefficient ($C_d$) Evaluation: Measured volumetric discharge rate is systematically evaluated against the observed water head height over the weir crest.

• Crest Geometry Comparison: Discharge efficiencies across rectangular, V-notch, and trapezoidal profile shapes are directly analyzed under identical inlet flow conditions.

• Low-Flow Measurement Sensitivity: High-precision discharge behavior under minimal flow rates is observed utilizing the triangular V-notch configuration.

Primary Applications

• Civil & Environmental Engineering Education: Open channel hydraulics and canal discharge measurement principles are practically taught in academic laboratories.

• Irrigation & Water Resource R&D: Flow metering structures for open canals and environmental monitoring channels are evaluated.

Manufactured in Pune, India, high-quality open channel flow setups are continuously delivered nationwide by SV Technocrats India.
