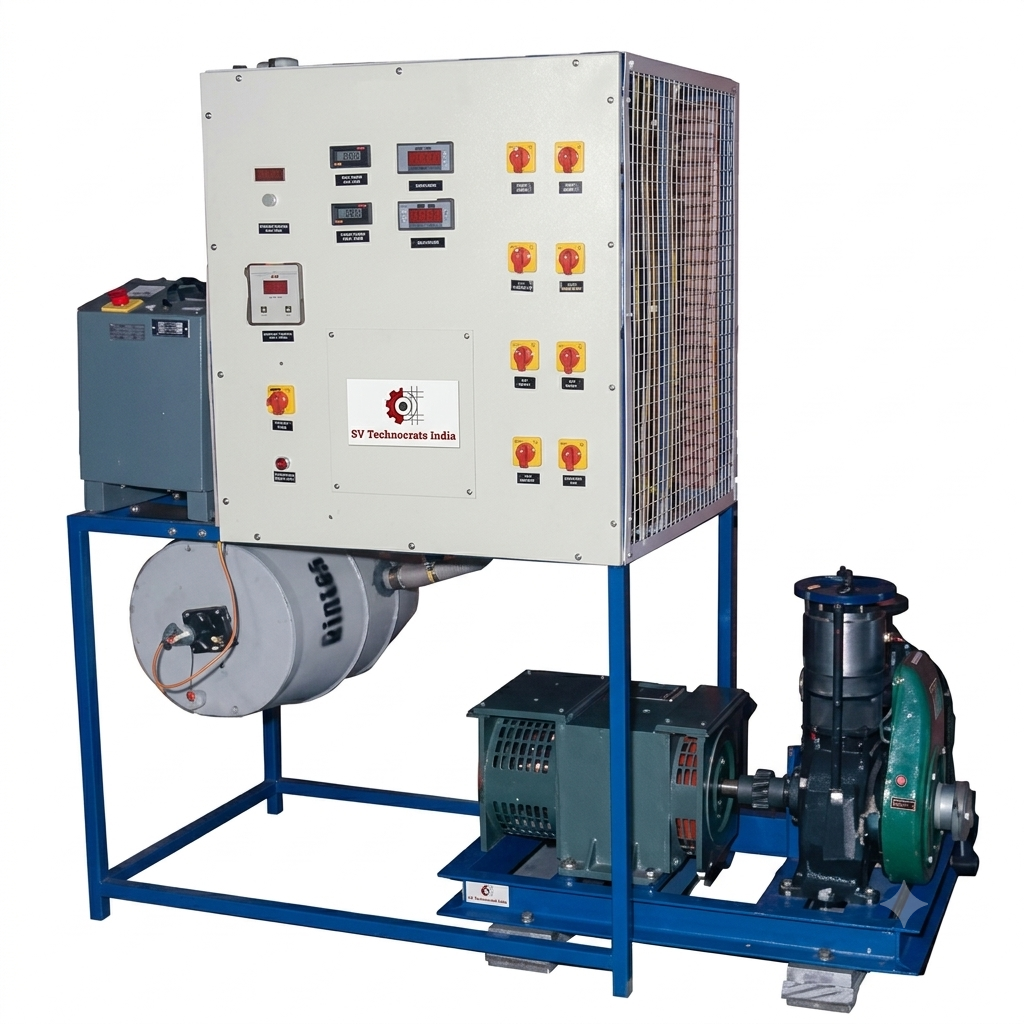

Variable Compression Ratio Engine Test Rig

The variable compression ratio engine test rig from SV Technocrats India in Pune offers an advanced platform for evaluating internal combustion engine dynamics. Engineered for research laboratories and technical universities, this apparatus helps users analyze how changing compression ratios influence performance, fuel efficiency, and exhaust emissions. As a premier manufacturer in Maharashtra, SV Technocrats India manufactures reliable, high-precision laboratory equipment.

What is a Variable Compression Ratio Engine Test Rig?

A variable compression ratio engine test rig allows researchers to modify the clearance volume of an engine while it operates. By adjusting the compression ratio without stopping the engine, operators can observe real-time changes in combustion behavior and power output. Consequently, engineering institutions rely on this setup for fundamental thermodynamic research and practical lab instruction.

Key Components and Features

This sophisticated testing rig incorporates high-grade instruments to ensure precise readings and flexible operations:

• Variable Compression Mechanism: Adjusts clearance volume smoothly across a wide operational range during engine runs.

• Engine Unit: Features a robust single-cylinder engine setup designed for steady-state performance evaluation.

• Loading Dynamometer: Measures output torque and engine speed accurately across various throttle settings.

• Combustion Diagnostics: Includes piezoelectric pressure transducers and crank angle encoders to generate precise pressure-volume (P-V) diagrams.

• Multi-Fuel Compatibility: Supports testing with petrol, diesel, and alternative biofuels.

• Exhaust Analyzer Integration: Measures carbon monoxide, nitrogen oxides, and hydrocarbon levels to evaluate emission profiles.

• Data Acquisition System (DAQ): Captures high-speed sensor signals and transfers real-time data to connected computer software.

Working Principle and Operation

To operate the variable compression ratio engine test rig, technicians select the desired fuel source and start the engine. Next, operators vary the compression ratio while keeping throttle and load parameters constant.

Meanwhile, sensors record cylinder pressures, fuel consumption rates, and exhaust temperatures. Software programs then process these data points instantly to construct combustion heat-release curves and efficiency charts. Furthermore, built-in emergency cutoff mechanisms protect both operators and equipment during high-load experiments.

Key Applications

This flexible experimental rig supports a wide array of academic and industrial testing needs:

• Academic Instruction: Demonstrates fundamental combustion phenomena, thermal efficiency changes, and engine knock limits.

• Alternative Fuel Research: Evaluates the combustion characteristics and feasibility of biodiesel, ethanol blends, and gaseous fuels.

• Emission Reduction Studies: Helps researchers analyze pollutant formation across varying compression ratios.

• ECU Calibration: Assists developers in tuning engine parameters for optimal fuel economy and performance.

Why Choose SV Technocrats India, Pune?

SV Technocrats India is Pune’s trusted engineering equipment manufacturer. Each test rig features durable structural steel frames, intuitive software controls, and comprehensive operating manuals for smooth lab setup. Contact SV Technocrats India in Pune today to request a quotation!
