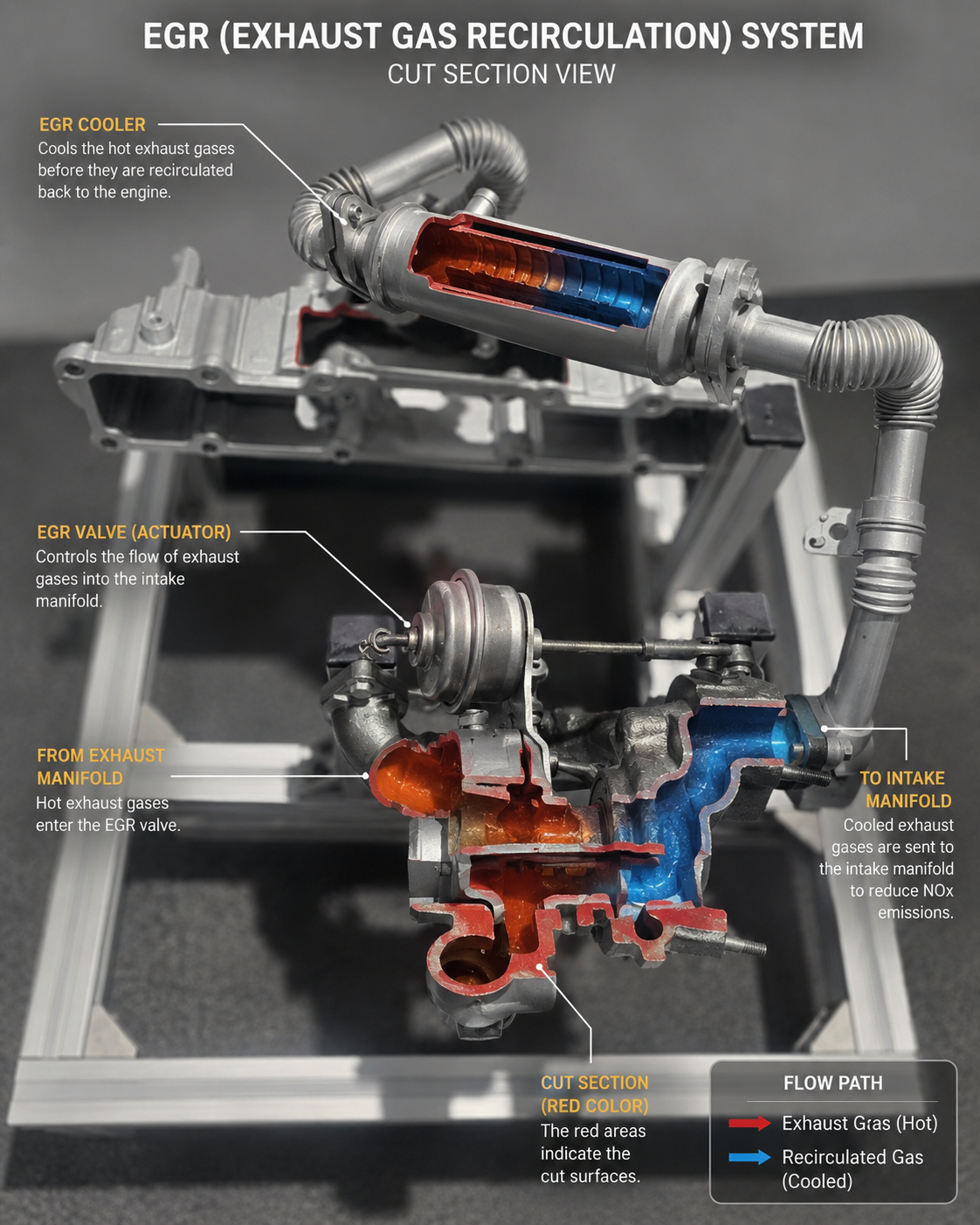

Cut section of EGR System

EGR (Exhaust Gas Recirculation) System Cut Section Model Manufacturer in India

SV Technocrats India is a leading manufacturer of EGR (Exhaust Gas Recirculation) System Cut Section Models in India, supplying high-quality automotive training equipment to engineering colleges, polytechnic institutes, ITIs, automobile training centers, and research laboratories. The EGR Cut Section Model has been specially developed to provide a clear understanding of the construction, internal components, and working principle of the Exhaust Gas Recirculation system used in modern automotive engines.

The cut section has been precisely prepared to expose the internal flow path between the exhaust manifold and the intake manifold. Through the sectioned model, the movement of exhaust gases and the operation of the EGR valve can be easily observed. It can be clearly understood how a controlled quantity of exhaust gas is recirculated into the combustion chamber to reduce combustion temperature and minimize the formation of harmful nitrogen oxide (NOx) emissions.

Every section has been carefully machined to provide maximum visibility of the internal passages while preserving the original construction of the component. High-quality materials and durable industrial finishes have been used to ensure long service life, low maintenance, and excellent demonstration quality.

The EGR System Cut Section Model is widely used as an effective teaching aid by engineering students, researchers, automobile technicians, and technical training institutes. Complex emission control technology can be easily explained through this practical model, enabling learners to gain a better understanding of modern engine systems.

As a trusted manufacturer of engine cut section models in India, SV Technocrats India offers reliable, cost-effective, and industry-standard automotive training models that enhance practical learning and simplify the study of advanced vehicle components.
