Vapor Compression Refrigeration Test Rig

Product Overview of Vapor Compression Refrigeration Test Rig

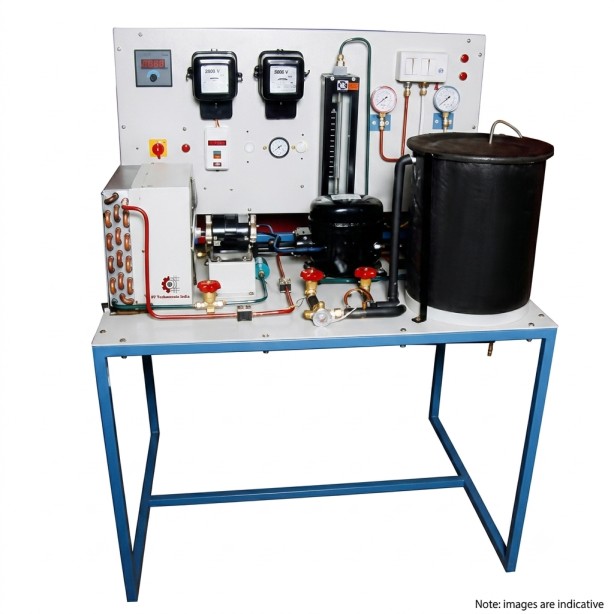

Advanced refrigeration learning setups are manufactured and supplied by SV Technocrats India, Pune’s premier producer of technical educational apparatuses. The Vapor Compression Refrigeration Test Rig is engineered to facilitate hands-on experimentation, operational evaluation, and thermodynamic analysis of standard refrigeration and cooling cycles.

Core System Construction & Features of Vapor Compression Test Rig

• Vapor-Compression Circuitry: High-pressure refrigerant circulation is driven through a commercial-grade hermetic compressor, air-cooled condenser, precision expansion valve, and evaporator heat exchanger.

• Environmentally Safe Refrigerants: Operating parameters are evaluated using standard commercial refrigerants such as R134a or R404a circulating through heavy-duty interconnecting tubing.

• Visual Phase-Change Observation: Internal fluid flow and phase transitions are directly observed through inline transparent sight glasses and clear inspection tube sections.

• Centralized Digital Monitoring Interface: Multi-point temperatures, fluid pressures, electrical power consumption, and refrigerant flow rates are continuously registered via digital panel meters and precision gauges.

• Comprehensive Safety Protection: Built-in electrical protection switches, thermal overload guards, and pressure relief cutouts are integrated to ensure secure laboratory operation.

Key Learning Objectives & Capabilities

• Refrigeration Cycle Analysis: Vapor-compression processes—including compression, condensation, throttling expansion, and evaporation—are systematically investigated.

• Coefficient of Performance (COP) Evaluation: Overall thermal efficiency and cooling effectiveness are calculated by evaluating electrical power inputs against heat extraction rates.

• Component-Level Diagnostics: Operational characteristics of individual components are analyzed under varying pressure and temperature conditions.

• Troubleshooting & Maintenance Practice: Practical diagnostic skills are cultivated through structured fault analysis and parameter adjustments.

Primary Applications & Corporate CSR Procurement

• Higher Technical Education: Applied thermodynamics, fluid mechanics, and fundamental HVAC principles are practically taught in technical universities and polytechnic colleges.

• Vocational Skill Development: Hands-on operational and service maintenance training is provided to technicians in professional HVAC institutes.

• Corporate CSR Procurement: High-precision refrigeration laboratory test rigs are manufactured and supplied by SV Technocrats India to support corporate CSR educational equipment donation programs nationwide.

Manufactured in Pune, India, high-precision thermal training setups are continuously delivered nationwide by SV Technocrats India.
