Impact Of Jet

SV Technocrats India, Pune’s premier manufacturer of technical training setups, supplies the Impact of Jet Apparatus for engineering institutions nationwide.

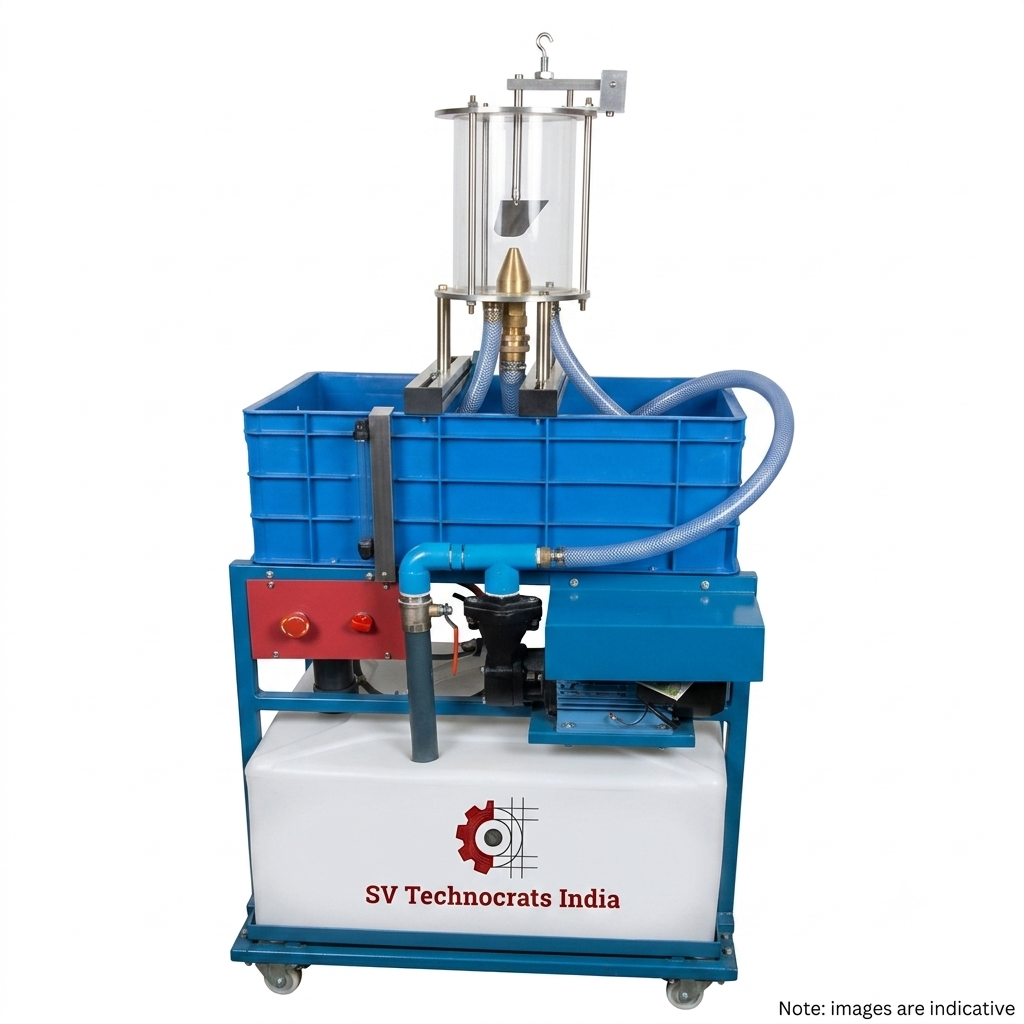

Designed to demonstrate impulse-momentum principles and hydrodynamic force transfer, the setup features a transparent cylindrical chamber housing a precision-machined brass nozzle. High-velocity water jets are directed vertically against interchangeable target vanes, including flat plates ($90^\circ$), hemispherical cups ($180^\circ$), and inclined plates ($45^\circ$). Fluid circulation is regulated via a centrifugal pump and inline control valves, while generated impact forces are measured using a weight pan assembly.

Key Capabilities:

  • Momentum Verification: Reaction forces ($F$) are evaluated against theoretical impulse calculations using $F = \rho \cdot Q \cdot v \cdot (1 – \cos\theta)$.

  • Vane Efficiency Analysis: Force transfer variations across different deflector geometries are systematically compared.

  • Academic Utility: Essential hydro-turbine and jet propulsion principles are practically mastered by engineering students.

Description

Product Overview – Impact of Jet

Essential hydrodynamic momentum demonstration capability is manufactured and supplied by SV Technocrats India, Pune’s trusted engineering training equipment brand. The Impact of Jet Apparatus is engineered to enable the measurement, comparison, and analysis of hydrodynamic impact forces exerted by a high-velocity fluid jet striking target vanes of varied geometries.

System Construction & Technical Features of Impact of Jet

  • Clear Test Enclosure: A transparent cylindrical acrylic enclosure is integrated around the impact area to ensure clear visual monitoring while preventing splash leakage.

  • Interchangeable Target Deflectors: Standard target surfaces—including flat plates ($90^\circ$), hemispherical cups ($180^\circ$), and inclined plates ($45^\circ/60^\circ$)—are mounted sequentially onto a balanced vertical stem.

  • Precision Jet Nozzle: Fluid is directed through a brass-machined tapered nozzle to produce a concentrated, high-velocity water jet.

  • Force Balance Mechanism: Deflection forces are counteracted using a weight pan arrangement or precision spring balance, allowing exact restore forces to be recorded.

Experimental Capabilities & Learning Outcomes

  • Conservation of Momentum Verification: Theoretical jet force ($F$) is calculated via impulse-momentum principles and compared directly against measured reaction forces:

$$F = \rho \cdot Q \cdot v \cdot (1 – \cos\theta)$$

  • Deflection Angle Efficiency Analysis: Variations in force transfer across differing vane angles ($\theta$) are evaluated under identical volumetric flow rates ($Q$).

  • Jet Velocity Relationship: Fluid discharge rates are manipulated to evaluate non-linear force responses relative to jet exit velocities ($v$).

Primary Applications

  • Higher Engineering Education: Impulse-momentum theory is practically demonstrated for civil, mechanical, and aeronautical engineering curriculum.

  • Turbine Design R&D: Hydro-turbine runner blade designs (such as Pelton wheel buckets) are analyzed for optimal energy conversion.

Manufactured in Pune, India, high-quality fluid dynamics apparatuses are continuously supplied nationwide by SV Technocrats India.

Empower technical education through impactful Corporate Social Responsibility (CSR) initiatives with SV Technocrats India, Pune’s trusted fluid mechanics equipment manufacturer.

By funding high-quality laboratory setups—including Hydraulic Benches, Venturimeters, and Pipe Friction Apparatuses—corporate sponsors directly bridge the gap between academic theory and practical engineering skills for students in underserved technical institutes.

Why Partner with SV Technocrats India?

  • Turnkey CSR Solutions: Complete manufacturing, delivery, installation, and lab setup support are provided.

  • Industry-Standard Quality: High-durability equipment ensures long-term educational impact for beneficiaries.

  • National Reach: Direct deployment from Pune to engineering and polytechnic colleges across India is seamlessly executed.
