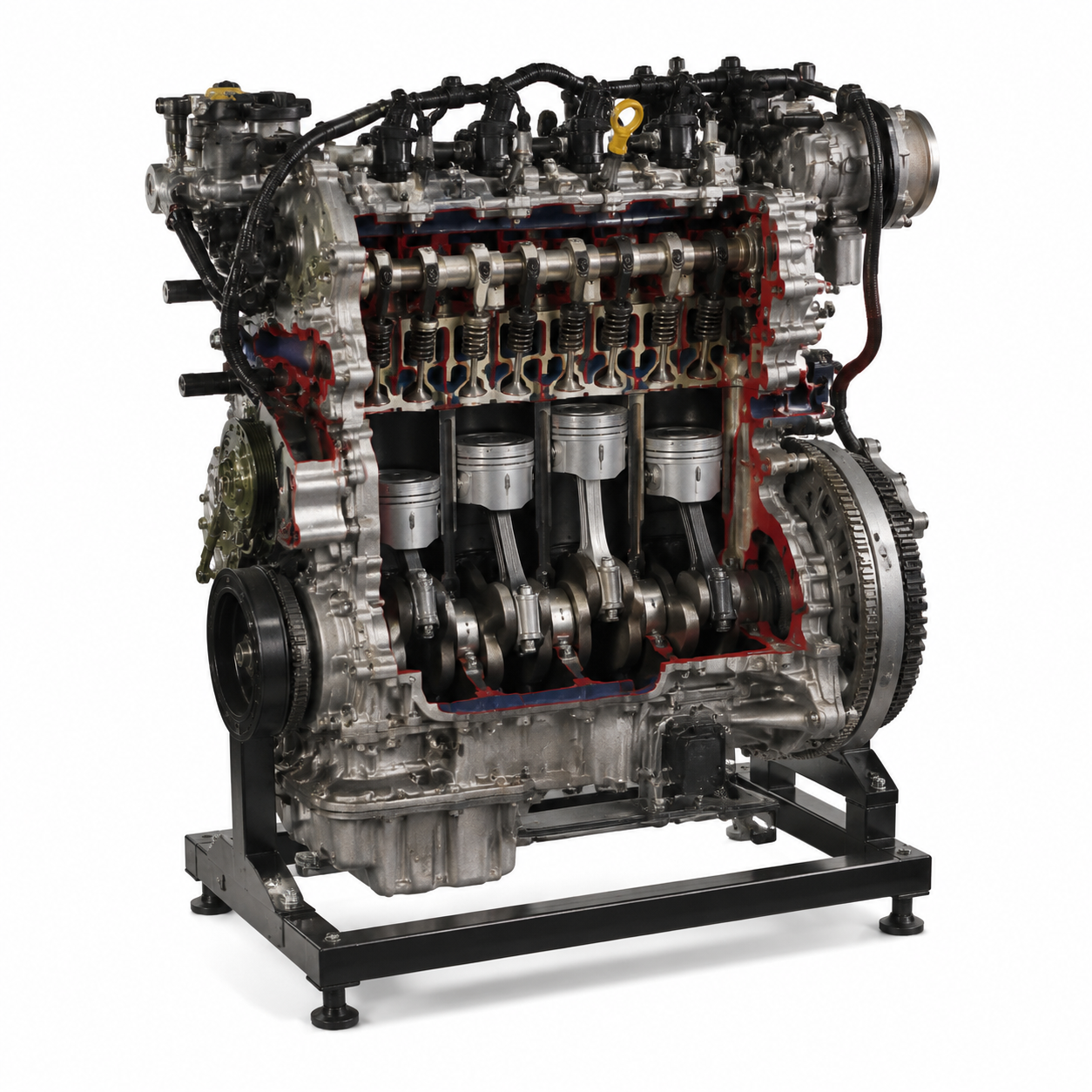

Cut Section of Four Cylinder Petrol Engine

Four Cylinder Four Stroke Petrol Engine Cut Section Model Manufacturer in India

SV Technocrats India is a leading manufacturer of Four Cylinder Four Stroke Petrol Engine Cut Section Models in Pune, India. Designed for engineering colleges, polytechnic institutes, ITIs, automobile training centers, research laboratories, and CSR skill development projects, this model provides a comprehensive understanding of the construction and working principle of a modern four-cylinder petrol engine.

The cut section has been precisely prepared to expose the engine’s major internal components, enabling learners to study their construction, arrangement, and operation. Key parts displayed include the cylinder block, four cylinders, pistons, connecting rods, crankshaft, spark plugs, intake valves, exhaust valves, camshaft, timing mechanism, and lubrication passages. Every section has been accurately machined to provide maximum visibility while maintaining the original configuration of the engine.

The working principle of the four-stroke petrol engine can be clearly demonstrated through the cut section model. The intake stroke allows the air-fuel mixture to enter the cylinder through the intake valve. During the compression stroke, the mixture is compressed as the piston moves upward. In the power stroke, the spark plug ignites the compressed mixture, generating power that drives the piston downward. Finally, during the exhaust stroke, burnt gases are expelled through the exhaust valve, completing the engine cycle.

Manufactured using high-quality automotive components and finished with durable industrial coatings, the model offers excellent visibility, long service life, and low maintenance. It serves as an effective teaching aid for practical automotive education, technical demonstrations, and hands-on learning.

SV Technocrats India supplies Four Cylinder Four Stroke Petrol Engine Cut Section Models to engineering institutions, technical universities, automobile training centers, research organizations, and corporate CSR skill development initiatives across India. Our precision-engineered cut section models simplify complex automotive concepts and help students gain a practical understanding of internal combustion engine technology.
