Description

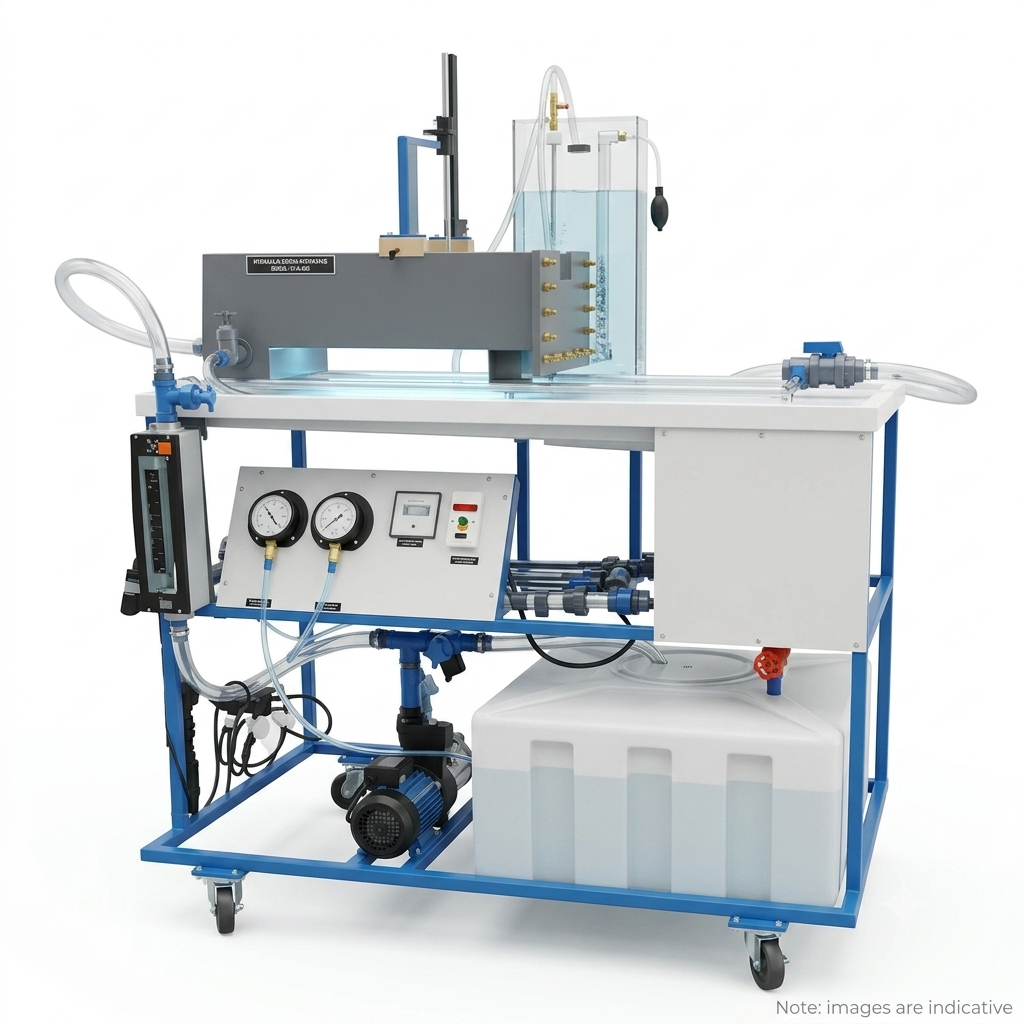

High-precision fluid dynamics educational equipment is manufactured and supplied by SV Technocrats India, Pune’s trusted engineering lab equipment provider. The Pipe Friction Apparatus (Major & Minor Losses) is engineered to measure and analyze total head losses that occur as liquids flow through piping systems. These energy losses—caused by surface friction along pipe walls, sharp bends, control valves, and sudden expansions or contractions—are precisely quantified across the setup.
System Construction & Technical Features
-
Vertical Trainer Panel: Multiple test pipes made of diverse materials and varying cross-sectional areas are supported on a rigid, powder-coated vertical frame.
-
Pressure Differential Tappings: High-precision pressure tapping points are pre-installed across every pipe section and fitting to allow accurate head-loss logging.
-
Modular Hydromechanical Coupling: The unit is operated either as a standalone trainer or seamlessly coupled with the optional Hydraulic Bench for continuous fluid recirculation.
-
Comprehensive Flow Instrumentation: Differential pressure drops are registered via piezometer tubes or multi-tube manometers, while flow velocity is monitored through rotameters or volumetric measuring tanks.
Experimental Capabilities
-
Darcy-Weisbach Equation Validation: Major head losses due to wall friction are evaluated, and friction factors ($f$) are determined across smooth and rough pipes.
-
Loss Coefficient ($K$) Evaluation: Minor losses caused by flow disturbances at valves, elbows, and diameter changes are calculated.
-
Regime & Velocity Analysis: The relationship between flow rate, Reynolds number, and frictional loss is demonstrated across laminar and turbulent regimes.
Primary Applications
-
Higher Technical Education: Core fluid mechanics principles are practically demonstrated to civil and mechanical engineering students.
-
Pipeline Design & R&D: Hydraulic flow behavior and loss characteristics are investigated for optimized piping layouts.
Manufactured in Pune, India, superior-quality fluid mechanics apparatuses are continuously supplied nationwide by SV Technocrats India.
Empower technical education through impactful Corporate Social Responsibility (CSR) initiatives with SV Technocrats India, Pune’s trusted fluid mechanics equipment manufacturer.
By funding high-quality laboratory setups—including Hydraulic Benches, Venturimeters, and Pipe Friction Apparatuses—corporate sponsors directly bridge the gap between academic theory and practical engineering skills for students in underserved technical institutes.
Why Partner with SV Technocrats India?
-
Turnkey CSR Solutions: Complete manufacturing, delivery, installation, and lab setup support are provided.
-
Industry-Standard Quality: High-durability equipment ensures long-term educational impact for beneficiaries.
-
National Reach: Direct deployment from Pune to engineering and polytechnic colleges across India is seamlessly executed.
