Description

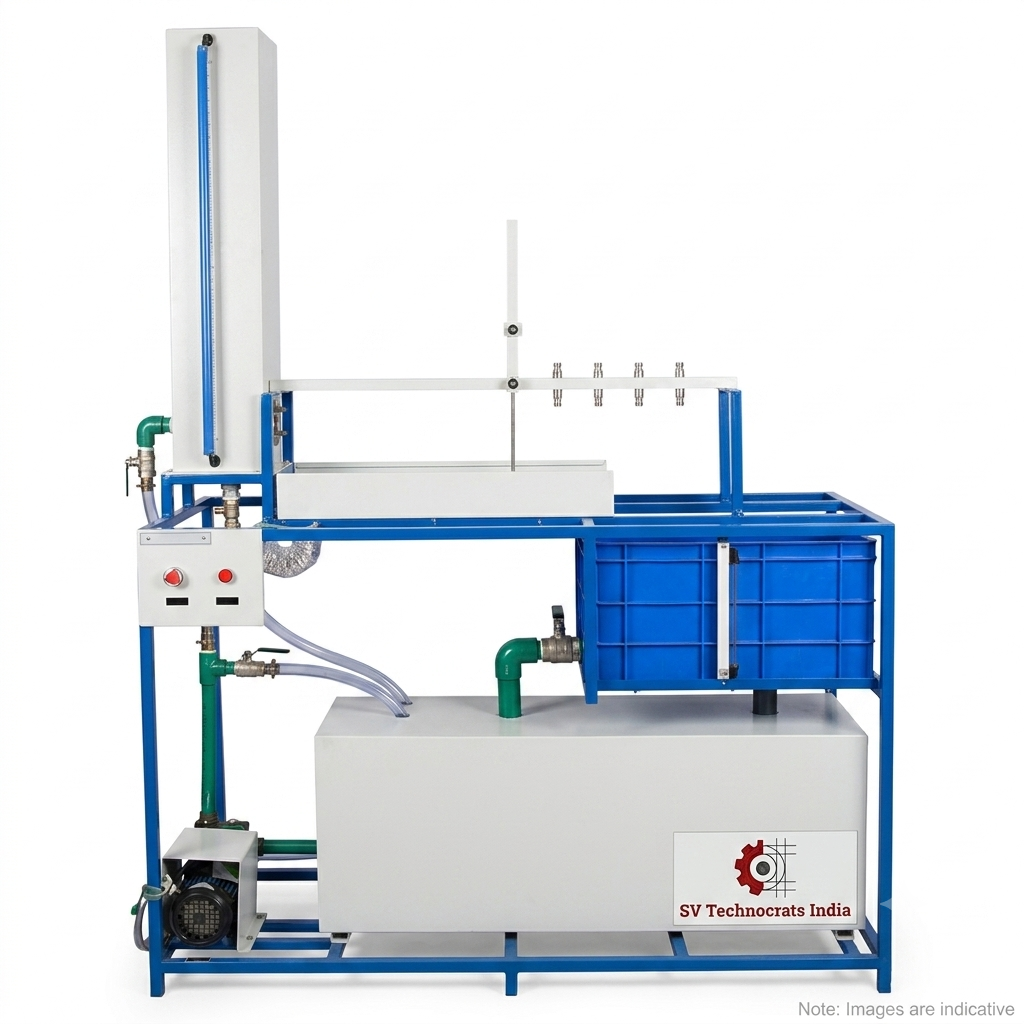

Essential laboratory training capability is delivered by SV Technocrats India, Pune’s trusted engineering equipment manufacturer. The Orifice and Mouthpiece Apparatus is engineered to investigate flow characteristics, jet profile behavior, and discharge coefficients ($C_d$) across varied orifice plates and mouthpiece geometries.
Core Construction & Features
-
Constant Head Tank: A steady fluid head is maintained within a transparent supply tank fitted with inlet flow regulation valves.
-
Interchangeable Attachments: Precision-machined orifice plates and various mouthpiece types (internal, external, cylindrical, and convergent) are mounted securely to the test section.
-
Instrumentation & Trajectory Measurement: Inlet pressure heads are monitored via piezometric tubes, while jet profiles and Vena Contracta dimensions are measured using an integrated X-Y hook gauge setup.
-
Volumetric Recirculation System: Discharged fluid is gathered in a calibrated collecting tank to enable accurate timed volumetric flow calculations ($Q_{\text{actual}}$).
Experimental Capabilities
-
Discharge Coefficient ($C_d$) Determination: Actual flow rate ($Q_{\text{actual}}$) is compared against theoretical predictions ($Q_{\text{theoretical}}$) across varying pressure heads.
-
Contraction ($C_c$) & Velocity ($C_v$) Coefficients: Jet contraction at the Vena Contracta and exit velocities are evaluated to confirm $C_d = C_c \times C_v$.
-
Jet Profile Analysis: Trajectory paths and profile variations between sharp-edged orifices and mouthpieces are systematically recorded.
Primary Applications
-
Academic Instruction: Fundamental hydrodynamics principles are practically demonstrated in university and polytechnic fluid mechanics laboratories.
-
Flow Metering R&D: Discharge efficiency variations across localized restrictions are evaluated for hydraulic device design.
Manufactured in Pune, India, high-quality fluid dynamics apparatuses are continuously supplied across the country by SV Technocrats India.
