Losses in Pipe Fittings – Minor Losses

Description

Advanced fluid mechanics laboratory equipment is designed, manufactured, and supplied by SV Technocrats India, Pune’s leading provider of technical education rigs. The Pipe Friction Apparatus (Minor Losses) is engineered to evaluate local head losses resulting from flow disturbances across various pipe fittings, valves, bends, expansions, and contractions. Although categorized as “minor,” these pressure drops are accurately quantified to prevent significant energy inefficiencies in complex piping networks.

Core Construction & Features

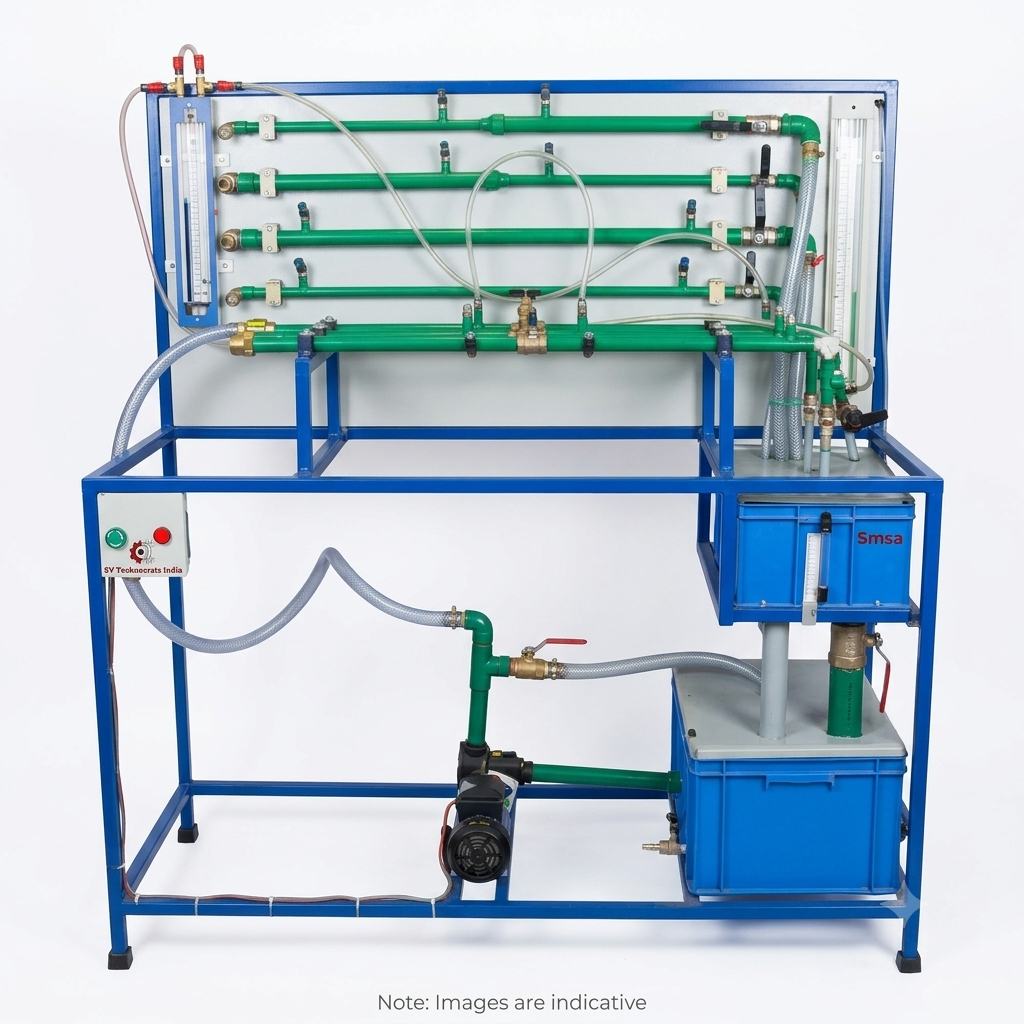

• Multiple Fitting Configurations: System bends, elbows, junctions, gate valves, and sudden expansion/contraction sections are integrated onto a durable vertical test frame.

• Precision Pressure Tappings: Dual pressure points are strategically positioned upstream and downstream of each component to ensure exact pressure differential readings.

• Flow Regulation & Instrumentation: Flow velocity is adjusted using inline control valves, while flow rate is monitored via an integrated rotameter or volumetric measuring tank.

• Pressure Monitoring: Differential head losses ($h_m$) across individual fittings are registered using multi-tube manometers or digital sensors.

Experimental Capabilities & Learning Outcomes

• Loss Coefficient ($K$) Determination: Head loss ($h_m$) is measured across individual fittings, and loss coefficients are derived using the standard expression:

• Velocity & Geometry Impact Analysis: Relationships between fluid velocity ($v$) and local pressure drops across varied fitting profiles (e.g., bends versus elbows) are evaluated.

• Cumulative Loss Calculation: Total energy dissipation within multi-fitting networks is systematically calculated.

Primary Applications

• Higher Technical Education: Fundamental fluid dynamics principles are taught to undergraduate civil and mechanical engineering students.

• Pipeline Design & R&D: Industrial piping layouts are optimized for minimal energy consumption through empirical loss evaluation.

Manufactured in Pune, India, high-quality educational test rigs are continuously supplied nationwide by SV Technocrats India.

Empower technical education through impactful Corporate Social Responsibility (CSR) initiatives with SV Technocrats India, Pune’s trusted fluid mechanics equipment manufacturer.

By funding high-quality laboratory setups—including Hydraulic Benches, Venturimeters, and Pipe Friction Apparatuses—corporate sponsors directly bridge the gap between academic theory and practical engineering skills for students in underserved technical institutes.
