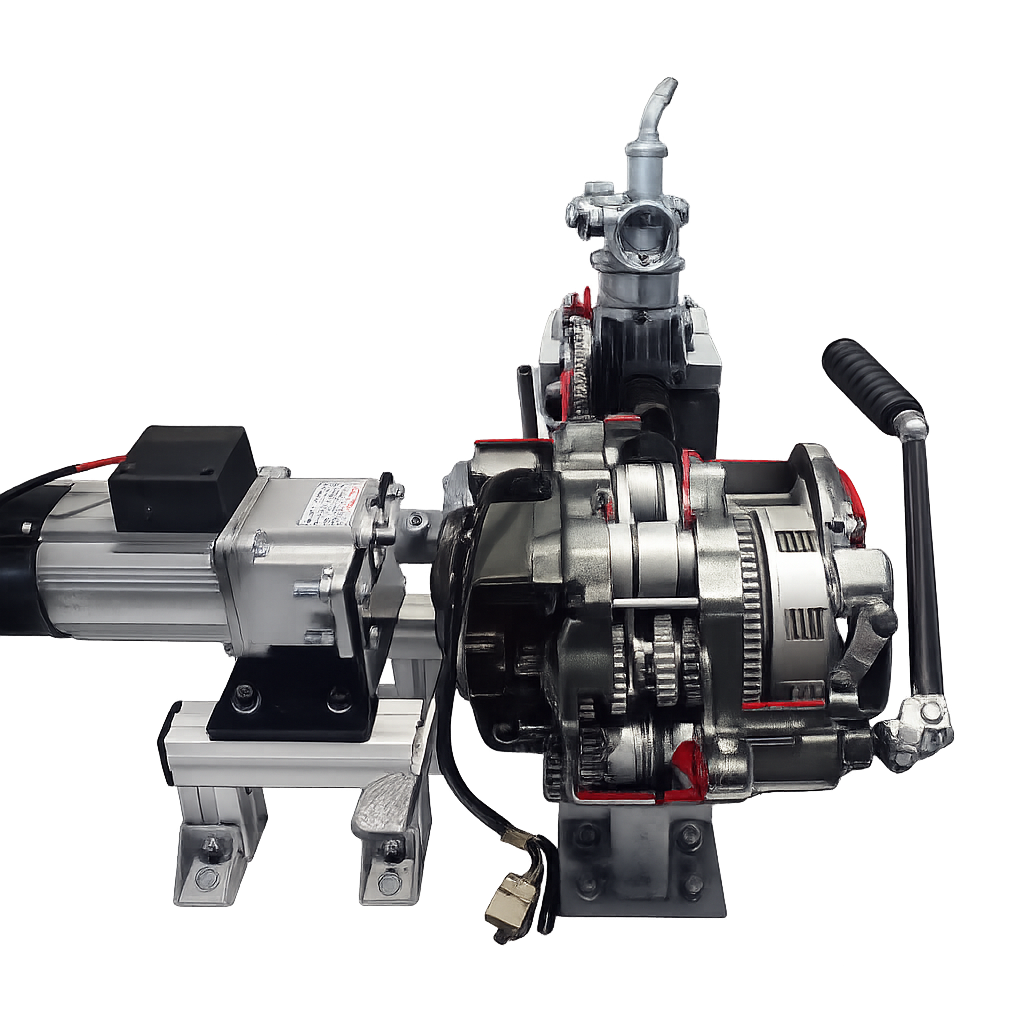

Working cut section of motorcycle engine

Motorcycle Engine Working Cut Section Model Manufacturer in India

SV Technocrats India is a leading manufacturer and supplier of Motorcycle Engine Working Cut Section Models in India. The model has been specially designed for engineering colleges, polytechnic institutes, ITIs, skill development centers, automotive training institutes, and mechanical engineering laboratories. A detailed understanding of the internal construction and working principles of a four-stroke motorcycle engine is provided through this precision-engineered training model.

The Motorcycle Engine Working Cut Section Model has been carefully sectioned to expose all major internal components, enabling the complete engine mechanism to be observed during operation. The model is designed to demonstrate the four-stroke combustion cycle—intake, compression, power, and exhaust—allowing the sequence of engine operations and power transmission to be understood with greater clarity.

The reciprocating motion of the piston, the rotation of the crankshaft, the movement of the connecting rod, the operation of the valve mechanism, and the functioning of the clutch and gearbox assembly can be clearly observed. All sectioned components have been highlighted with durable color coding so that individual parts can be easily identified during demonstrations and practical sessions.

The engine has been mounted on a robust steel frame and is driven by a low-speed electric motor to ensure smooth, continuous, and safe operation. The slow-speed movement allows the internal components to be examined in detail, making the working principles of the engine easier to understand for students, instructors, and technicians.

Manufactured using high-quality materials and precision machining techniques, the Motorcycle Engine Working Cut Section Model is widely used for automotive workshops, technical training centers, engineering colleges, and vocational institutes. The model is extensively utilized for practical demonstrations, helping theoretical concepts to be effectively correlated with real-time mechanical operations. It serves as an ideal educational aid for enhancing practical knowledge and technical skills in automotive engineering.
