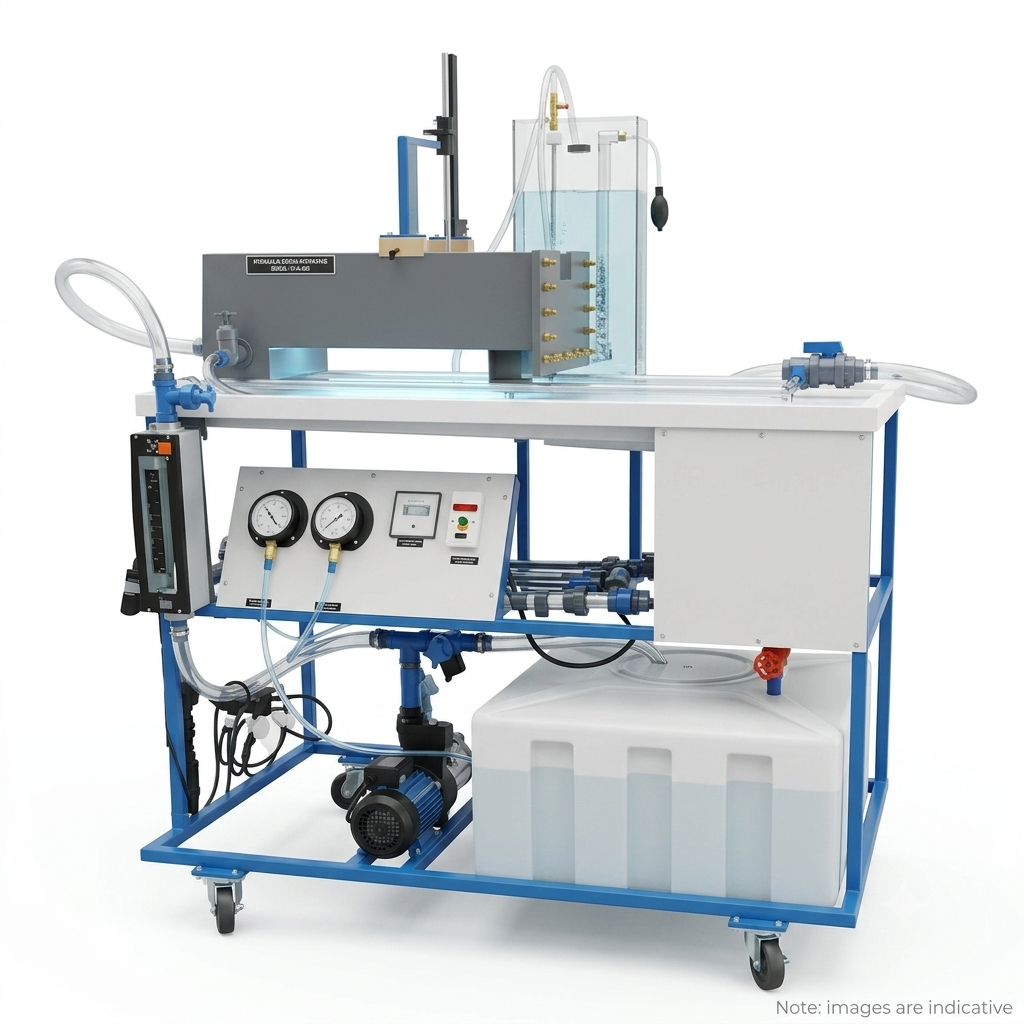

SV Technocrats India’s Hydraulic Bench is a fundamental tool used in fluid mechanics laboratories for experiments related to fluid flow, pressure, and other hydraulic phenomena. It provides a controlled environment to study the behavior of water and other fluids under various conditions. Here’s an overview:

________________________________________

Key Features:

1. Compact Design:

o Portable and self-contained, allowing ease of use in educational and research labs.

2. Water Supply System:

o Equipped with a pump to circulate water through various experimental setups.

3. Measuring Tools:

o Includes a measuring tank with a sight glass for precise flow measurement.

o A volumetric tank with a scale to measure flow rates.

4. Drainage System:

o Integrated drainage ensures continuous water recycling.

5. Control Valves:

o Regulate water flow and pressure during experiments.

6. Connections for Accessories:

o Quick connections for modules like flow meters, venturi meters, weirs, and friction loss apparatus.

________________________________________

Typical Experiments Conducted Using a Hydraulic Bench:

1. Flow Measurement:

o Using devices like orifice plates, venturi meters, and nozzles to study flow rates and coefficients.

2. Friction Loss in Pipes:

o Investigating head loss due to friction in pipes of different materials, lengths, and diameters.

3. Impact of Jets:

o Measuring the force exerted by a jet of water on a flat or curved surface.

4. Weirs and Notches:

o Studying flow over rectangular, triangular, and trapezoidal weirs.

5. Bernoulli's Theorem:

o Verifying the relationship between pressure, velocity, and height in fluid flow.

6. Hydraulic Gradient and Energy Line:

o Understanding the distribution of energy in fluid systems.

________________________________________

Components of a Hydraulic Bench:

1. Main Tank:

o Stores water and acts as a reservoir.

2. Measuring Tank:

o Calibrated to measure discharged water volume accurately.

3. Centrifugal Pump:

o Circulates water through the system.

4. Control Valves and Piping:

o Direct and regulate water flow for various experiments.

5. Overflow System:

o Prevents water spillage and maintains system balance.

________________________________________

Applications:

1. Educational Use:

o Common in engineering institutions for fluid mechanics experiments.

2. Research:

o Used to test hydraulic components and systems.

3. Industrial Training:

o Helps trainees understand the principles of fluid flow and hydraulic systems.

SV Technocrats India makes high quality fluid mechanics laboratory equipment.
